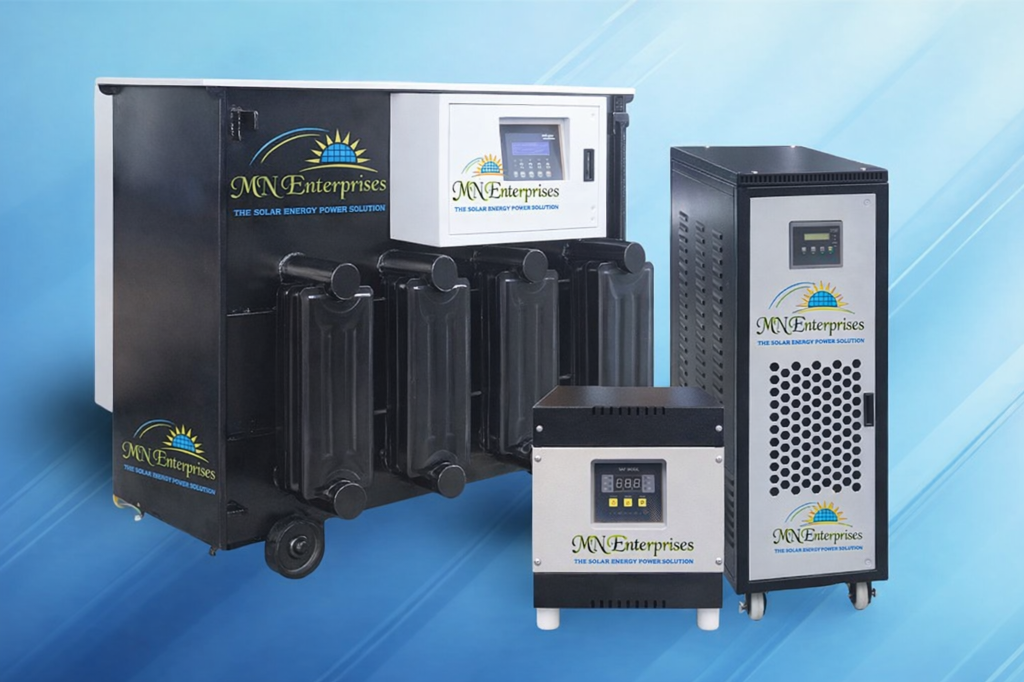

| System construction | As per IS:9815 |
|---|---|
| Single phase capacity | 1 to 25 kva |
| Three phase (air cooled) | 3 to 500 kva |
| Three Phase (oil cooled) | 3 to 5000 kva |
| Input Voltage Range for 1PH-AC | 90V-270V, 110V-270V, 140V-270V, 170V-270V, 195V-270V |
| Input Voltage Range for 3PH-AC | 190V-465V, 240V-465V, 260V-465V, 295V-465V, 320V-465V, 340V-480V, 360V-480V |
| Special range | As per customer requirements |
| Output voltage | 220/230/240 V AC in single phase 380/400/415 V AC in three phase |
| System | Unbalanced/balanced type |
| Connection | Star-Star |
| Output Voltage regulation | (+/-) 1% from no load to full load |
| Servo motor drive model -A | AC Servo Synchronous Motor - Small |
| Correction speed | 35 V/sec-1 ph, 60 V/sec-3 ph |
| Response time | Above 60 milli.sec. |
| Servo motor model-B | DC servo motor |
| Correction speed | Upto 105 V/sec. |
| Response time | 10 milli.sec. |
| Operating frequency | 47 to 53 HZ |
| Output waveform | True reproduction of input |
| Insulation | Class "F" for Air Cooled / Class "A" for Oil Cooled |
| Short circuit percentage and period | 300 % for 250 milli sec. |
| Overload capacity | 120 % for 1 minute |
| Effect of load P.F on OP Volts | Nil |
| Waveform distortion | Nil |
| Duty Cycle | 100 % continuous |
| Surge & Spike Protection | By Using Class2 SPD (Optional) |
| Ambient | Upto 45c max above ambient Relative humidity upto 90% |
| Efficiency | Better than 98% (electrical consumption saved) |
| Environment | Designed for indoor / outdoor tropical use |
| Mounting | On wheels |
| Earthing | Earthing terminals provided |
| Enclosure | Cabinet RAL 9005 & Front Display Door RAL 7040 |
